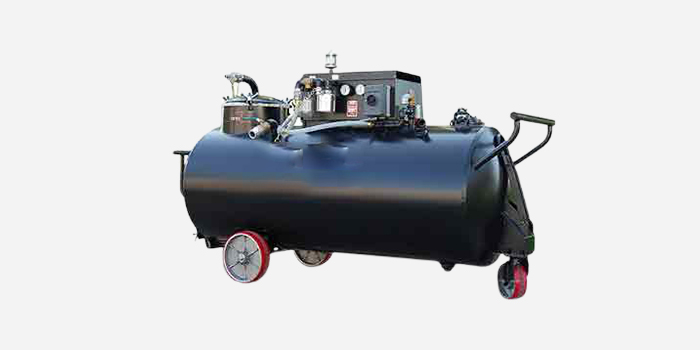

Sump Sucker

Get an Estimate

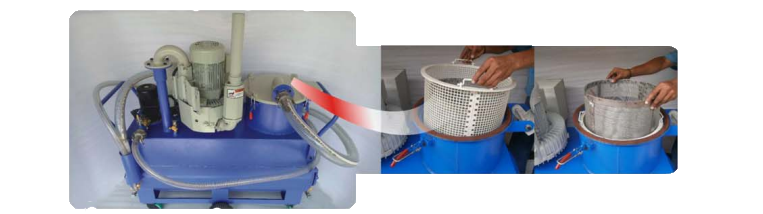

A sump sucker is a specialized tool for cleaning the coolant sumps of machine tools. The sump contents usually consist Of coolant & solids. The solids consist of metal chips & swarf, in just a few minutes, a sump sucker will pick up everything in the sump- fluid, as well as solids. The filter separates the solids from the fluid. Filtered coolant is returned to the machine tool sump or transported for additional processing.

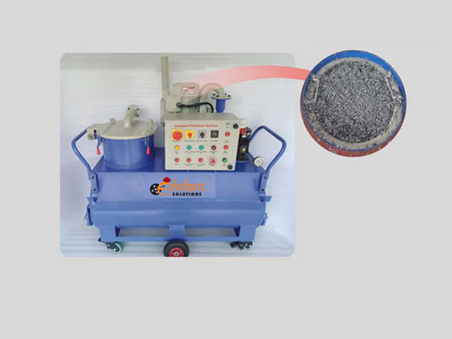

Coolant/Sump Cleaning System

Improve Product Quality, Reduce Oil / Coolant Expenses

No Filter Element
No Replacement Cost
Improved Product Finish
Reduced Oil Consumption
Extended Oil Change Period
Reduced Machine Downtime
Reduced Pollution & Environmental Impact
Reduced Storage & Disposal Cost of Waste coolant

Substantial Savings on Cost of Filters, Tools I Dies & Coolant Replacement

Application :

CNC / VMC Machines
Soluble Cutting Oil
Neat Cutting Oil
Water Emulsion
Quenching Oil
Storage Tanks

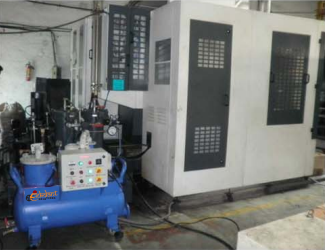

Save by Extending Coolant Life, Tool Life and Machine Life

Sump Cleaner removes very fine dirt from Coolant upto 1 Op by Vacuum created in the tank. There are no consumables hence no recurring cost. Collected dirt can be easily cleaned & the unit put back to use again

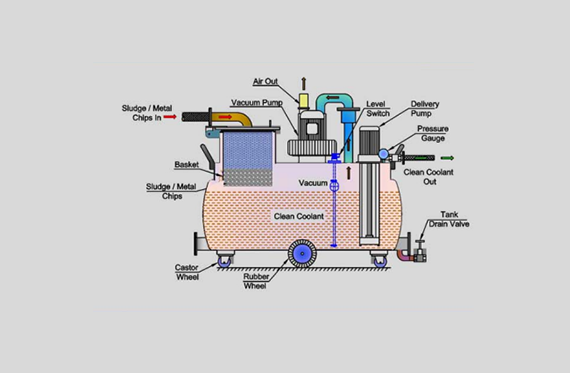

Working Principle

Coolant / Sump Cleaner removes sludge, metal chips & swarf from Coolant tanks & filters it via reusable stainless steel mesh filter. The System works on the Principle of Vacuum Suction. A poweful two stage vacuum blower creates vacuum in the tank of the unit, which sucks in coolant, metal chips. Swarf etc, passing it through mesh basket. Contamination gets in the basket & clean coolant flows through to the tank of the unit. A centrifugal delivery pump delivers back the clean coolant.

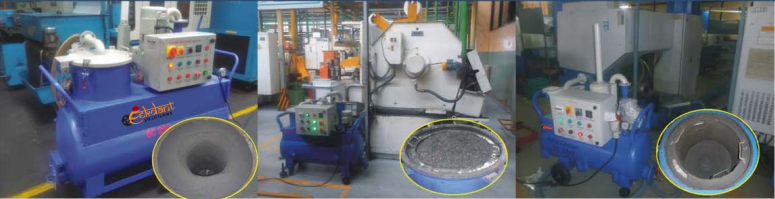

Installations

Model	SC 50	SC 150	SC 250	SC 400	SC 500
Tank Capacity (Liters)	50	150	250	400	500
Basket Capacity (Liters)	15	20	45	45	50
Max. Vacuum (mm Hg)	180	220	350	350	350
Vacuum Pump Motor (HP)	1	2	5	5	5 x 2
Delivery Pump (LPM)	50	100	160	160	300
Suction Hose (ID)	1 _1/4^"	1 _1/2^"	2^"	2^"	2 _1/2^"
Delivery Hose (ID)	3/4 ^"	1 ^"	1^"	1^"	1 _1/2^"
Weight (Kg)	110	150	270	320	400
Dimensions (LxWxH)	34^" x 27^" x 44^"	54^" x 25^" x 35^"	68^" x 30^" x 54^"	82^" x 30^" x 54^"	98^" x 30^" x 54^"
